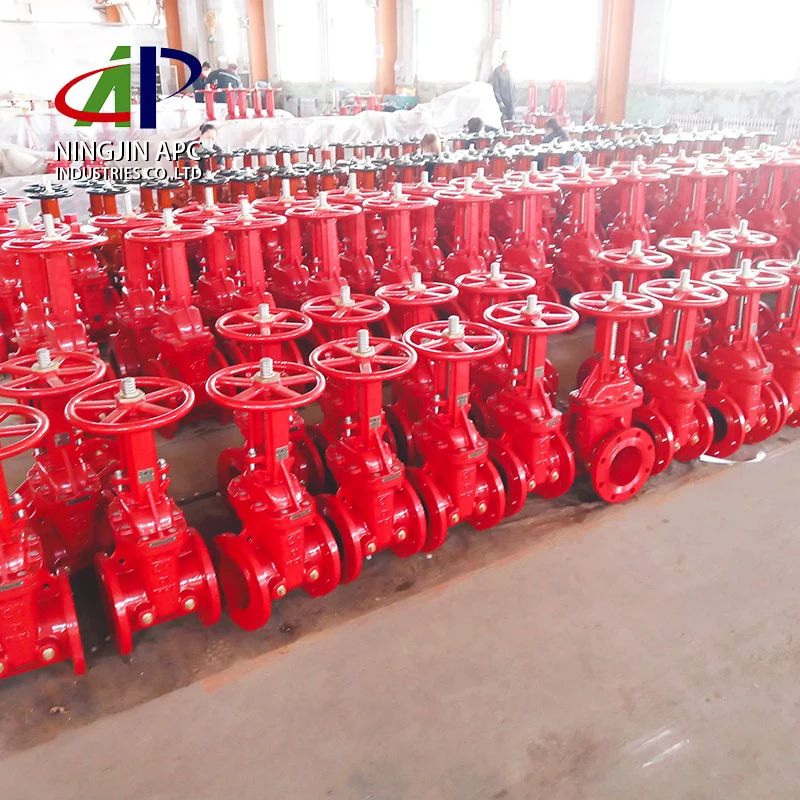

DN50- DN300 300PSI UL/FM Gate Valve PN16 Flange
Technical Features
Conforms: AWWA C515
Normal Pressure: 300psi
Flange Standard: ASME/ANSI B16.1 Class 125 or ASME/ANSI B16.42 Class 150
or BS EN1092-2 PN16 or GB/T9113.1
Sizes: 2½", 3", 4", 5",6", 8", 10", 12"
Face to Face Standard : ASME B16.10
Approvals: UL,CUL, FM, ANSI 61 & 372
Maximum Working Pressure: 21 BAR / 300 PSI (Maximum Testing Pressure: 600 PSI)
Maximum Working Temperature: 0°C to 80°C
Fusion bonded epoxy coated interior and exterior RAL3000 conforms to AWWA C550
NPT plug on body
High Quality stainless steel stem
Material List of Different Parts
Technical Features
Conforms: AWWA C515
Normal Pressure: 300psi
Flange Standard: ASME/ANSI B16.1 Class 125 or ASME/ANSI B16.42 Class 150
or BS EN1092-2 PN16 or GB/T9113.1
Sizes: 2½", 3", 4", 5",6", 8", 10", 12"
Face to Face Standard : ASME B16.10
Approvals: UL,CUL, FM, ANSI 61 & 372
Maximum Working Pressure: 21 BAR / 300 PSI (Maximum Testing Pressure: 600 PSI)
Maximum Working Temperature: 0°C to 80°C
Fusion bonded epoxy coated interior and exterior RAL3000 conforms to AWWA C550
NPT plug on body
High Quality stainless steel stem
Material List of Different Parts
| Component | Material | Specification |
| Body | Ductile Iron | A536 65-45-12 |
| Wedge | Ductile Iron, EPDM Encapsulated | |
| Wedge Nut | Stainless Steel | AISI 304 |
| Stem | Stainless Steel | AISI 420 |
| Bonnet | Ductile Iron | A536 65-45-12 |
| Gasket | Rubber | EPDM |
| Packing | Graphite | Commercial |
| Gland | Ductile Iron | A536 65-45-12 |
| Yoke Nut | Bronze | B62 C83600 |
| Handwheel | Ductile Iron | A536 65-45-12 |
| Handwheel Nut | Ductile Iron | A536 65-45-12 |
| NPT Plug | Melleable Iron | Commercial |
| Gland Bolt | Stainless Steel | AISI 316 |
| Bonnet Bolt | Carbon Steel | A307 B |
