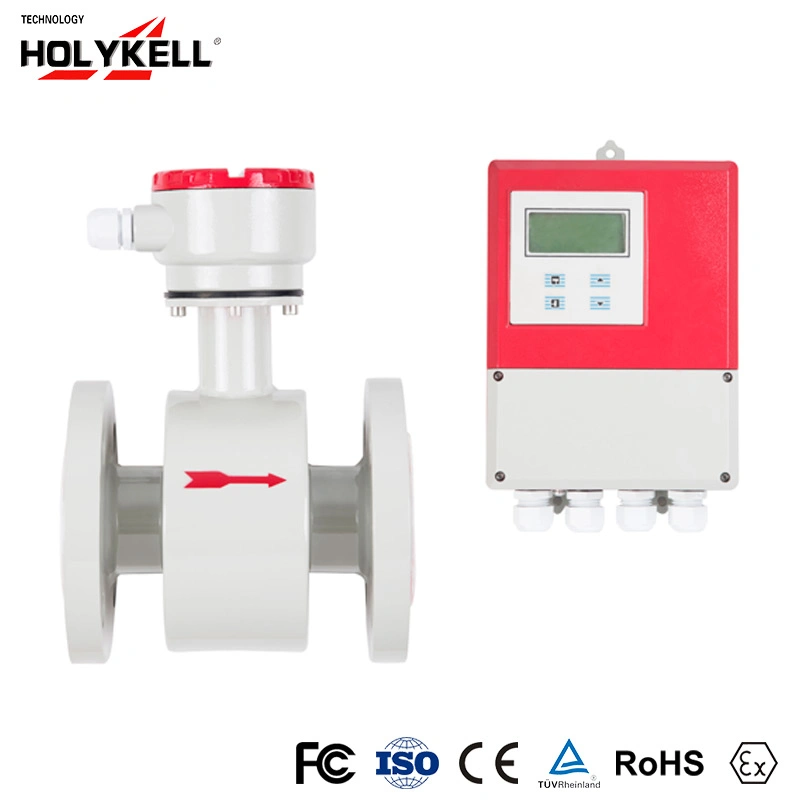

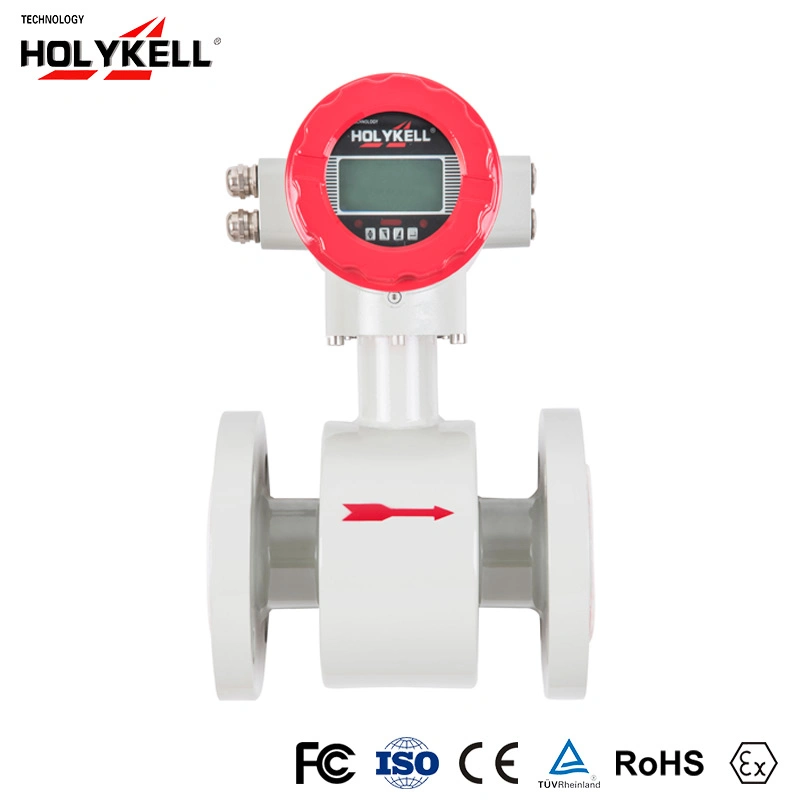

DN100 Flange Liquid Pulse Electromagnetic Flow Sensor
4800 series of intelligent electromagnetic flow meter is a high performance, high reliability flowmeter for measuring the volumetric flow of conductive liquids and slurries in closed conduits. Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy, Papermaking, water supply and drainage, food, medicine and other industries
Basic techinical specification for electromagnetic flow meter
| Medium | Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc |
| Diameter | DN10~DN3200mm |
| Accuracy | ±0.5% |
| Medium temperature | <60ºC |
| Nominal pressure | GB 0.6MPa (DN700~DN2000) |
| DIN PN16,PN25,PN40,PN63 | |
| JIS10K,20K,40K | |
| ANSI Class150,Class300,Class600, others can be customized | |
| Electrode | 316L (Suitable for domestic water, industrial water, raw water, underground water, sewage, etc.; not applicable to acid and alkali salt) |
| Lining material | Chloroprene rubber(CR), polyurethane rubber(PU) |
| Installation way | Carbon steel flange (standard), Stainless steel flange(optional) |
| Signal output | Pulse and 4~20mA; (if use lithium battery, without signal output) |
| Power supply | 220VAC/24VDC/lithium battery |
You will benifit from our electromagnetic water flow meter:
1.Saving money
Measuring precision,long lifetime
2. Low cost
The cost is lower than the other models out there contact us info at holykell.en.made-in-china.com
3. Less maintenance
No moving parts, maintenance-free
4.Widely used
Wide range of norminal diameters DN10mm to DN3200mm .
Every fluids with entrained solids can be metered ,eg, slurry or cellulose pulp
