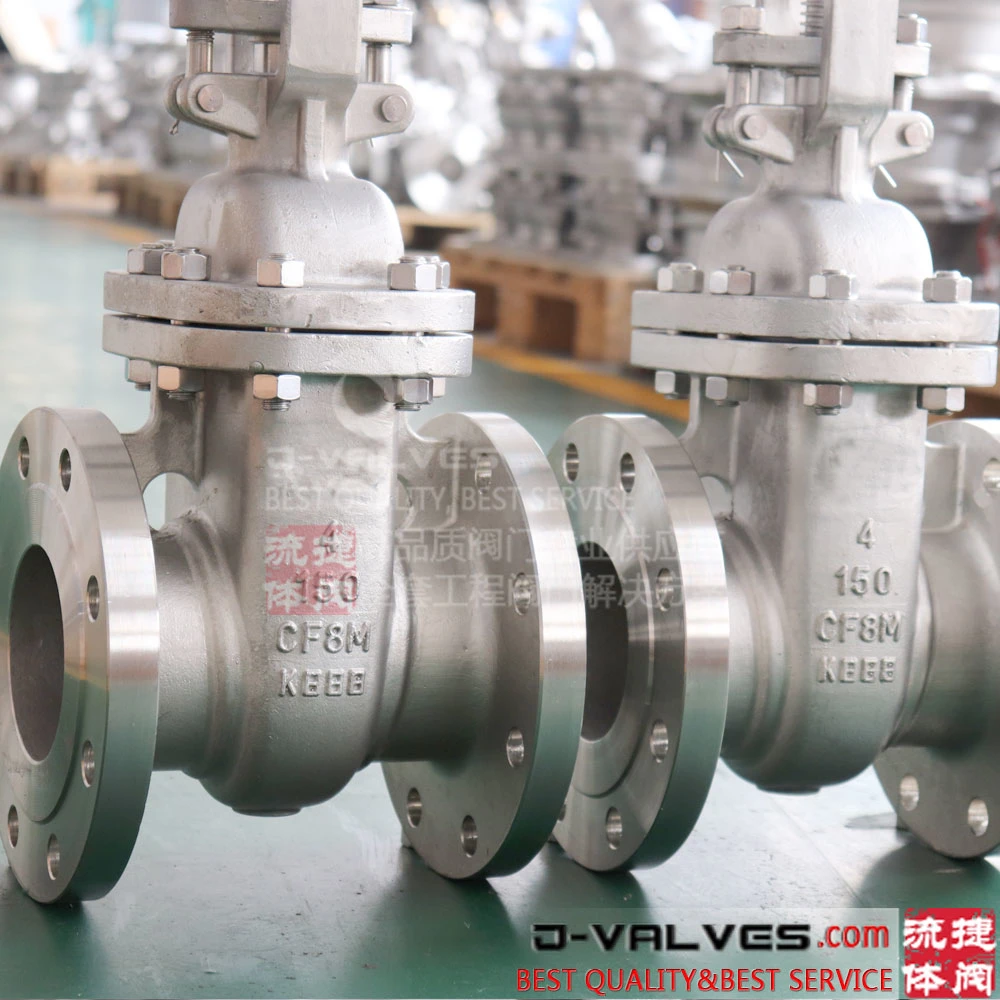

API Stainless Steel&CF8&CF8M Flexible Flanged Gate Valve
1.API Stainless Steel&CF8&CF8M Flexible Flanged Gate Valve Specifications:
2.4" 150LB Stainless Steel A351 CF3M RF Flanged Gate Valve Features:
Size: 1/2"-48"(DN15-DN1200)
Design:ASME B16.34,API600,API1603
Flange dimension:ASME B16.5
Face to face:ASME B16.10
Inspection &testing:API600/API1603/ASME16.34
2.4" 150LB Stainless Steel A351 CF3M RF Flanged Gate Valve Material List:
J-VALVES FAQ
Q1: We are interested in your products?
A1: In order to recommend you suitable products, please provide detail information, like size, material, pressure, model.
Q2: Is the requirement for MOQ?
A2: For some small size, like 1/4''-1''(DN6-DN25), it request the MOQ is 50pcs for each size. Generally speaking, it depends on your order.
Q3: How about the warranty?
A3: The warranty time is 18 months after leaving our factory. We can repair or change because of the quality problems.
Q4: Payment
A4: Mainly T/T, Western Union & PayPal are applicable for us. Payment Term: 30% prepayment, 70% balance paid before shipping or against copy of BL.
Q5: Can you manufacture different standards valves according to customer requirements?
A5: Yes. We can manufacture API,DIN,GOST,JIS standards for different pressure & temperature & size according to different needs.
If you want to know more about our products, please contact freely. We will patiently answer your all questions.
To get more Information at our websites: http://www.j-valves.com
J-VALVES Other Products We Manufacture
1.Industry Valves
Ball Valve
3 Way Ball Valve
1 PC Male/Female Thread Ball Valve
2 PC Male/Female Thread Ball Valve
3 PC Male/Female Thread Ball Valve
1 PC Flange/Welding/Union Ball Valve
2 PC Flange/Welding/Union Ball Valve
3 PC Flange/Welding/Union Ball Valve
Trunnion ball valve
Flanged ball valve
Nickel aluminum bronze ball valve
Two-way steel ball valve
Cast steel ball valve
WCB ball valve
Forged ball valve
High pressure ball valve
API6D ball valve
API608 ball valve
DIN3357 ball valve
EN13709 ball valve
GB/T12237 ball valve
JIS B2212 B2214 ball valve
BS5351 ball valve
Globe Valve
Male/Female Thread Globe Valve
Flange Globe Valve
Nickel aluminum bronze ball
Two-way steel globe valve
Cast globe valve
WCB globe valve
Bellows globe valve
High pressure globe valve
API602 forged globe valve
BS1873 globe valve
ASME B16.34 globe valve
DIN3356 globe valve
EN13709 ball valve
GB/T12235 globe valve
JIS B2071 globe valve
JIS B2081 globe valve
BS1873 globe valve
Gate Valve
Male/Female Thread Gate Valve
Flange Gate Valve
Nickel aluminum bronze gate valve
Two-way steel gate valve
Cast gate valve
WCB gate valve
High pressure gate valve
API602 forged gate valve
API600 gate valve
API6D gate valve
DIN3352 gate valve
EN10434 gate valve
GB/T 12234 gate valve
JIS B2073 gate valve
JIS B2083 gate valve
BS1414 gate valve
Check Valve
Wafer Check Valve
Spring Check Valve
Dual Disc/Plat Wafer Check Valve
Swing Check Valve
Flange Check Valve
Nickel aluminum bronze check valve
Two-way steel check valve
Cast check valve
WCB check valve
High pressure check valve
API602 check valve
API 6D check valve
BS 1868 check valve
DIN3356 check valve
EN10739 check valve
GB/T12236 check valve
Butterfly Valve
Flange Butterfly Valve
Nickel aluminum bronze Butterfly Valve
Two-way steel Butterfly Valve
Cast Butterfly Valve
WCB Butterfly Valve
Wafer butterfly valve
Ventilation butterfly valve
API609 butterfly valve
AWWA C504 butterfly valve
DIN3354 butterfly valve
GB/T12238 butterfly valve
BS5155 butterfly valve
Angle Seat Valve
Pneumatic Ball Valve
Pneumatic Angle Seat Valve
Electric Ball Valve
Electric Angle Seat Valve
Y Strainer/Filter
3 .Sanitary valve
Sanitary Butterfly Valves
Sanitary Check Valves
Sanitary Ball Valvess
Sanitary Reversal Valve
Sanitary Diaphragm Valves
Sanitary Sample Valves
Sanitary Safety Valves
Sanitary Control Valves
Sanitary Relief Pressure Valves
4. Sanitary Pipe Fittings
Sanitary Elbow
Sanitary TeeSanitary Reducer
Sanitary Cross
Sanitary Triclamp Ferrule
Sanitary Cap
Sanitary Pipe Hanger
Sanitary Tank Cleaning Ball
Sanitary Hose Joint
Sanitary Unions
Sanitary Sight Glass
Sanitary Strainer
1.API Stainless Steel&CF8&CF8M Flexible Flanged Gate Valve Specifications:
| Product Name | 4" 150LB Stainless Steel A351 CF3M RF Flanged Gate Valve |
| 1. Material | SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc. |
| 2. Size | 1/2''~48'' ( DN15~DN1200) |
| 3. Thread standard | ISO9001 & CE, TS |
| 4. Port | Full Port |
| 5. Working Pressure | 150LB~1500LB |
| 6. Connection Ends | RF, FF. RTJ, Butt Welded. |
| 7. Working Temp. | -29~425ºC, or according to customer requirements for different industry. |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Operated | Handwheel |
| 10. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 15~20 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Country of Origin | Wenzhou city, China |
| Production Capacity | 6000 ton/year |
| MOQ | 10 PCS/size |
2.4" 150LB Stainless Steel A351 CF3M RF Flanged Gate Valve Features:
Size: 1/2"-48"(DN15-DN1200)
W.P:CLASS 150/300
W.T:-425ºC
Rising stem
Design:ASME B16.34,API600,API1603
Flange dimension:ASME B16.5
Face to face:ASME B16.10
Inspection &testing:API600/API1603/ASME16.34
2.4" 150LB Stainless Steel A351 CF3M RF Flanged Gate Valve Material List:
| NO. | PARTS | MATERIAL | |||
| 1 | BODY | WCB+13Cr | CF8 | CF8M | |
| 2 | DISC | WCB+13Cr | CF8 | CF8M | |
| 3 | STEM | 20Cr13 | 304 | 316 | |
| 4 | GASLET | PTFE/304+GRAPHITE | |||
| 5 | BONNET | WCB | CF8 | CF8M | |
| 6 | BOLT | 35CrMo | 304 | 304 | |
| 7 | NUT | 45 | 304 | 304 | |
| 8 | PACKING | PTFE/FLEXIBLE GRAPHITE | |||
| 9 | CLEVIS PIN WITH HEAD | 35 | 304 | 304 | |
| 10 | SPLI PIN | Q235A | 304 | 304 | |
| 11 | GLAND | WCB | CF8 | CF8 | |
| 12 | EYE BOLTS | 35CrMo | 304 | 304 | |
| 13 | FLAT PAD | 65Mn | 304 | 304 | |
| 14 | NUT | 45 | 304 | 304 | |
| 15 | STEM NUT | BRONZE | |||
| 16 | BONNET NUT | 45 | 304 | 304 | |
| 17 | HANDWHEEL | FCD/WCB | |||
| 18 | ROUND NUT | 45 | 304 | 304 | |
