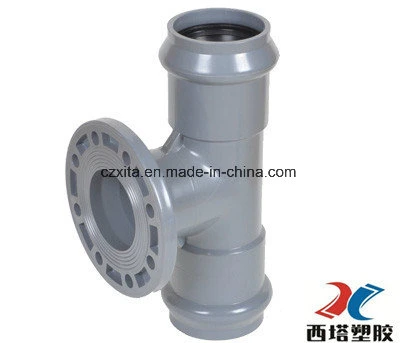

PVC pipe fitting two faucet and one flange reducing tee
MATERIal: PVC
CONNECOR: cement
Standard: ISO4422, ISO1452, GBT10002
Size: 20mm~400mm
Fittings are 100% inspected before delivery to customers with100% virgin material.
Our Business Steps:
1)Communication: customers interest in our products , discuss price , check sample quality
2)Negotiation : talking about the sizes, quantity , and other details
3)Ordering: settle down and place order to us
4)Producing: after orders , we start productions at once
5)Packing: while products come out of machines then packed
6)Delivery : everything gets ready ,place the ship, send to dock , to be shipped
Size
The properties of the products
1.Light weight
2.High strength
3.Low resistence
4.Corrosion resistence
5.Easy installation
6.Long service life
7.Low cost
8.Innocuity and sanitation
Factory
Our Business Steps:
1)Communication: customers interest in our products , discuss price , check sample quality
2)Negotiation : talking about the sizes, quantity , and other details
3)Ordering: settle down and place order to us
4)Producing: after orders , we start productions at once
5)Packing: while products come out of machines then packed
6)Delivery : everything gets ready ,place the ship, send to dock , to be shipped
MATERIal: PVC
CONNECOR: cement
Standard: ISO4422, ISO1452, GBT10002
Size: 20mm~400mm
Fittings are 100% inspected before delivery to customers with100% virgin material.
Our Business Steps:
1)Communication: customers interest in our products , discuss price , check sample quality
2)Negotiation : talking about the sizes, quantity , and other details
3)Ordering: settle down and place order to us
4)Producing: after orders , we start productions at once
5)Packing: while products come out of machines then packed
6)Delivery : everything gets ready ,place the ship, send to dock , to be shipped
Size
| Spec D1*D2 | Size | ||||||
| L | h | Z | Φ1 | Φ2 | H | Φ-n | |
| 160*110 | 428 | 141.5 | 191 | 180 | 225 | 21 | 17.5-8 |
| 200*110 | 475 | 155 | 210 | 180 | 225 | 21 | 17.5-8 |
| 200*160 | 535 | 155 | 216.5 | 240 | 285 | 24 | 22-8 |
| 225*110 | 490 | 166 | 225 | 180 | 225 | 21 | 17.5-8 |
| 225*160 | 540 | 166 | 230 | 240 | 285 | 24 | 22-8 |
| 250*110 | 520 | 180 | 238 | 180 | 225 | 21 | 17.5-8 |
| 250*160 | 573 | 180 | 240 | 240 | 285 | 24 | 22-8 |
| 250*200 | 623 | 180 | 260 | 295 | 340 | 28 | 22-8 |
| 315*110 | 580.5 | 198 | 279 | 180 | 225 | 21 | 17.5-8 |
| 315*160 | 618 | 198 | 277 | 240 | 285 | 24 | 22-8 |
| 315*200 | 663 | 198 | 292 | 295 | 340 | 28 | 22-8 |
The properties of the products
1.Light weight
2.High strength
3.Low resistence
4.Corrosion resistence
5.Easy installation
6.Long service life
7.Low cost
8.Innocuity and sanitation
