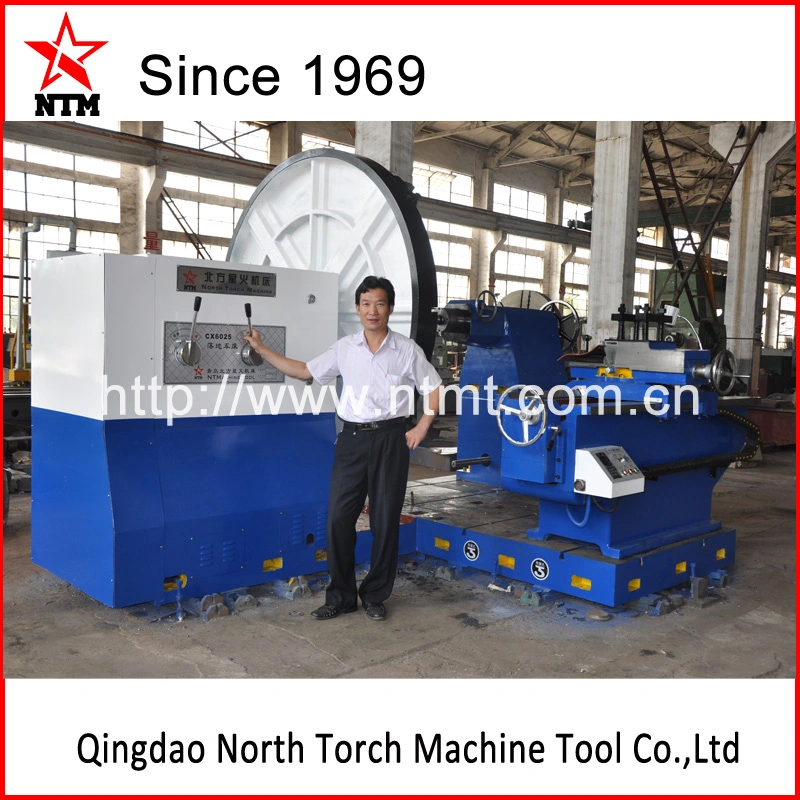

Horizontal Flange Turning CNC Lathe Machine
For Turning Flange, Shipyard Propeller,Tube Plate,Tire Mold,Wheel Hub Turbine,Flange,Oil Pan,Shaft,etc
More than 50 years' experience in machinery industry since 1960s.
Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
Base adopts triangular guide design
Reasonable structure
High performance with low cost
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
Application: The base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
| Type | Unit | CK6016 | CK6018 | CK6020 | CK6025 | CK6030 |
| Swing Diameter over machine bed | mm | φ1600mm | φ1800mm | φ2000mm | φ2500mm | φ3000 |
| Chuck Diameter | mm | φ1000mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm |
| Chuck jaw seat length | mm | 400mm | 400mm | 500mm | 500mm | 500mm |
| Work-piece length | mm | 500mm | 500mm | 500mm | 750mm | 1000mm |
| Work-piece Weight | T | 2T | 2T | 3T | 3T | 3T |
| Spindle Diameter | mm | φ190mm | φ200mm | φ220mm | φ220mm | φ260mm |
| Spindle speeds | r/min | 14-108r/min | 14-108r/min | 4-160r/min | 4-106r/min | 4-106r/min |
| X Axis Stroke | mm | 800mm | 900mm` | 1000mm | 1250mm | 1500mm |
| Z Axis Stroke | mm | 350mm | 350mm | 350mm | 350mm | 350mm |
| X Axis Rapid Speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
| Z Axis Rapid Speed | mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
| Cutting Tool Carriage Size | 300*300 | 300*300 | 300*300 | 300*300 | 300*300 | |
| Cutting Tool Carriage Size | mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm | 40*40mm |
| Motor Parameters | ||||||
| Main motor power | KW | 11KW | 11KW | 15KW | 18.5KW | 22KW |
| Feed Motor Power of X Axis | KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW | 2.3KW |
| Feed Motor Power of Z Axis | KW | 2.3KW | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
| Lubrication Motor Power | KW | 0.37KW | 0.37KW | 0.37KW | 0.55KW | 0.55KW |
| Machine Accuracy | ||||||
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
| L*W*H Machine Dimensions | mm | 2800*1850*1800mm | 2800*1950*1900mm | 2800*2000*2000mm | 3250*2650*2650mm | 3500*3300*3200mm |
| Machine Weight | T | 6T | 9.5T | 11T | 12.5T | 15T |
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
