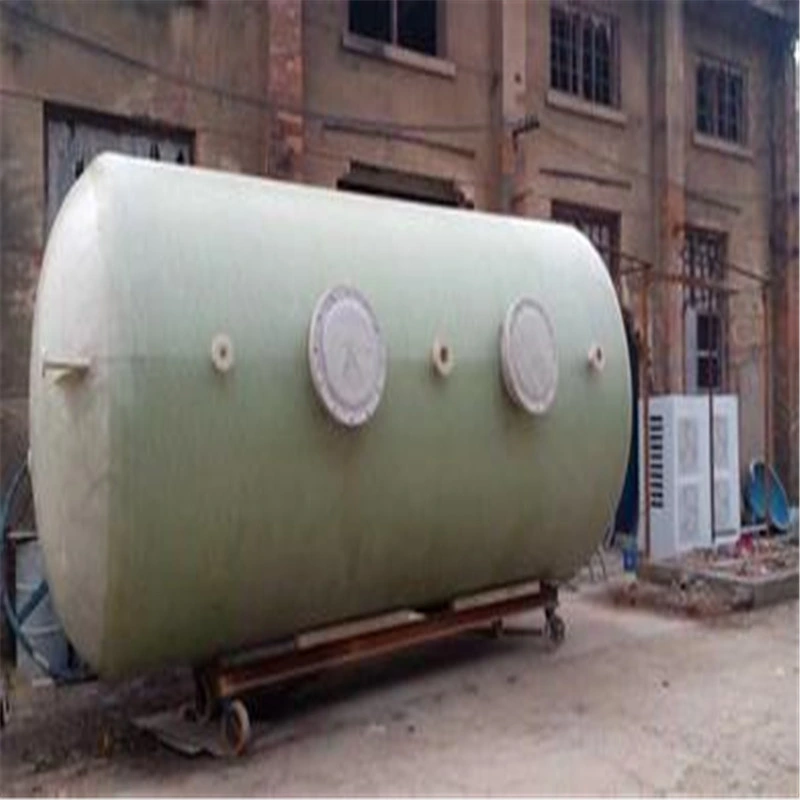

Fibreglass Reinforced Plastic (FRP) tanks
Advantage
1) light weight
2) high strength
3) corrosion resistance
4) acid /alkali resisitance
5) non-toxic
6) smooth face
7) easy installation
8) anti seepage
9) heat insulation
10) long service life
Company Introducution:
Beijing ZLRC Enviromental Protection Equipmental Co., Ltd. is a high- tech professional FRP (fiberglass reinforced plastic) tank and pipe manufacturer with unique technical power and advanced production line.
Product Description
FRP chemical storage tank is made of the high performance composite materials-glass fiber and resin by advanced continuous frp filament winding technology.
Typical applications
These tanks are used to transport and storage liquid chemicals such as oil, methanol, fuels, glycol, inhibitors and any compatible chemicals to and from offshore platforms. They are also suitable for transporting chemicals by road or rail.
Specifications of FRP / GRP storage tank
| Nominal Volume (m3) | Actual Volume (m3) | Tank size (mm) | Thickness (mm) | |||||
| D | L1 | L2 | a | b | c | |||
| 3 | 2.93 | 1000 | 3900 | 3400 | 500 | 25 | 50 | 7 |
| 4 | 4.07 | 1200 | 3800 | 3200 | 500 | 25 | 80 | 8 |
| 5 | 5.03 | 1400 | 3700 | 2800 | 500 | 25 | 80 | 10 |
| 6 | 6.3 | 1600 | 3400 | 2600 | 500 | 25 | 80 | 10 |
| 8 | 8.64 | 1800 | 3700 | 2800 | 500 | 25 | 80 | 11 |
| 10 | 10.17 | 1800 | 4300 | 3400 | 500 | 40 | 80 | 12 |
| 16 | 15.17 | 1800 | 6500 | 5600 | 500 | 40 | 80 | 13 |
| 20 | 20.26 | 2200 | 5700 | 4600 | 500 | 50 | 80 | 14 |
| 25 | 24.83 | 2200 | 6900 | 5800 | 500 | 50 | 100 | 14 |
| 30 | 32 | 2600 | 6800 | 5600 | 500 | 50 | 100 | 16 |
| 40 | 40 | 2600 | 7900 | 6700 | 500 | 50 | 100 | 16 |
| 50 | 50.06 | 2800 | 8600 | 7200 | 500 | 50 | 100 | 18 |
| 63 | 60.6 | 2800 | 10800 | 9400 | 500 | 50 | 100 | 18 |
(D=diameter, a= man-hole diameter on the top, b= inlet diameter on the top, c=outlet diameter on the side, L1=tank length, L2=max length between pedestals)
FRP Tank Producing Line
We are leader in producing the frp tank. We have more than 30 years experience in producing the frp items. Our tank and tank winding machine are in high quality and competitive price in china. Expecially, we have completely after service and technical support.
Welcoming you visit our factory sincerely.
