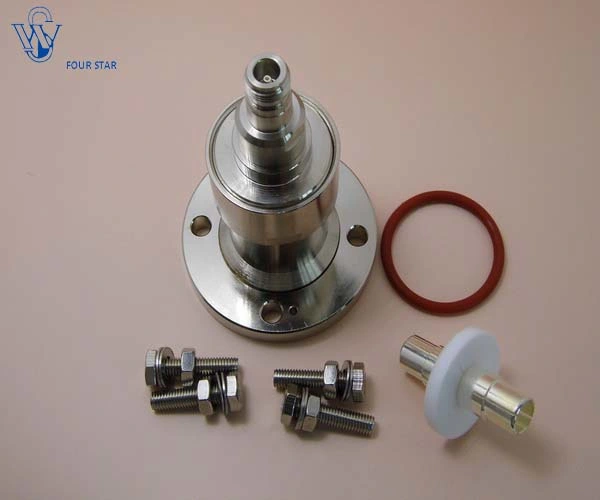

| 1-5/8"EIA Flange Connector to N female connector adaptor | ||
| Model No. | 13/8EIA/N-JK | |
| Interface | 1-5/8" EIA Flange | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-3GHz | |
| VSWR | ≤1.07@DC-1000MHz | |
| Dielectric Withstanding Voltage | ≥6000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Average Power | 7.0KW @900MHz | |
| Peak Power Maximum | 90KW | |
| Contact Resistance | Center Contact ≤1.5mΩ | Outer Contact ≤1.5 mΩ |
| Mechanical | ||
| Durability | Mating cycles ≥100 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | - |
| Center Conductor | Phosphor Bronze | Ag |
| Gasket | Silicone Rubber | - |
| Hardware kits | Stainless Steel | - |
| Environmental | ||
| Operating Temperature | -45ºC-85 ºC | |
| Weatherproof Rate | IP67 | |
| RoHs Compliant | Yes | |
Founded in 1994, Four Star Communication Parts Co.,Ltd is located in No.88 S338 Road Zhenjiang City, Jiangsu Province China (230Km away from Shanghai).
Four Star Communication is one of the excellent manufacturer dedicating to design and make RF coaxial connectors, RF cable assembly, Microwave components.
Our products range:
RF coaxial connectors Series : SMA ,SMB,SMC, BNC,TNC, N,7/16 DIN , 1.0/2.3,1.6/5.6 ,SMZ (BT43) ,QMA ,FME,F,UHF,MCX,MMCX,EIA Flange, 4.3/10 etc.
RF coaxial Cable assembly(Jumper Cable)
Micro-wave Components : Dummy Load(Terminator), Attenuator, Surge Arrestor(Surge Protector), Power Splitter (Divider), Directional Coupler.
