DN80 Pn16 ANSI 150 Flanged Stainless Steel Cast Steel Gate Valve

API600 Class 150 8 Inch WCB Wedge Cast Steel Gate Valve With Prices Manufacturer TECHNICAL REQUIREMENT :    Design and Manufacture  Conform to API 600     Flange dimensions  Conform to ASME B16.5     Face to Face  dimensions Conform to  ASME B16.10    Tes

Featured Products

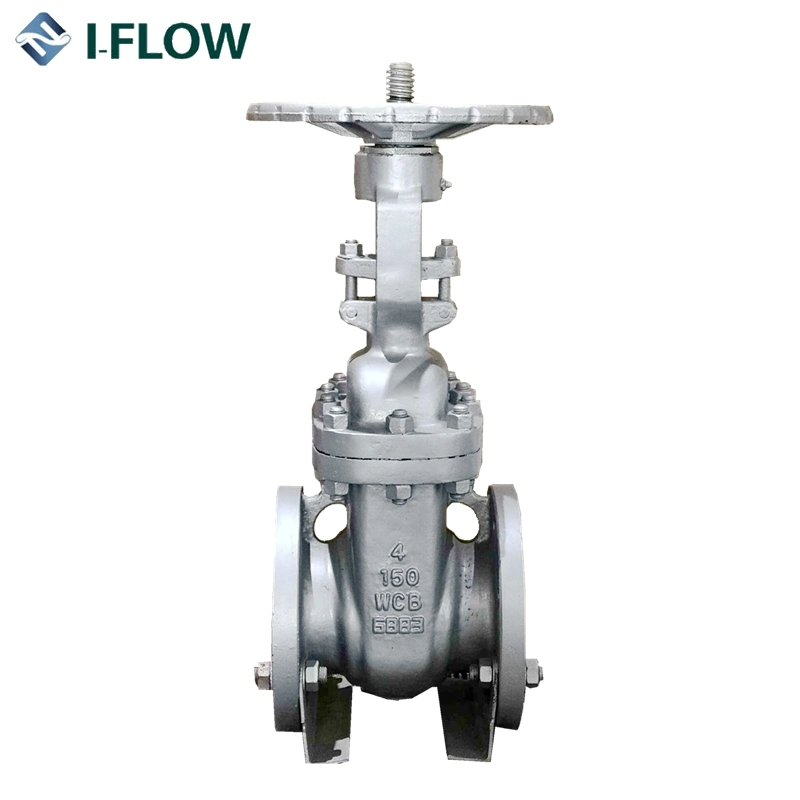

API600 Class 150 8 Inch WCB Wedge Cast Steel Gate Valve With Prices Manufacturer



TECHNICAL REQUIREMENT :
    Design and Manufacture  Conform to API 600
    Flange dimensions  Conform to ASME B16.5
    Face to Face  dimensions Conform to  ASME B16.10
    Testing Conform to API 598
    Driving mode: hand wheel, bevel gear, electric.

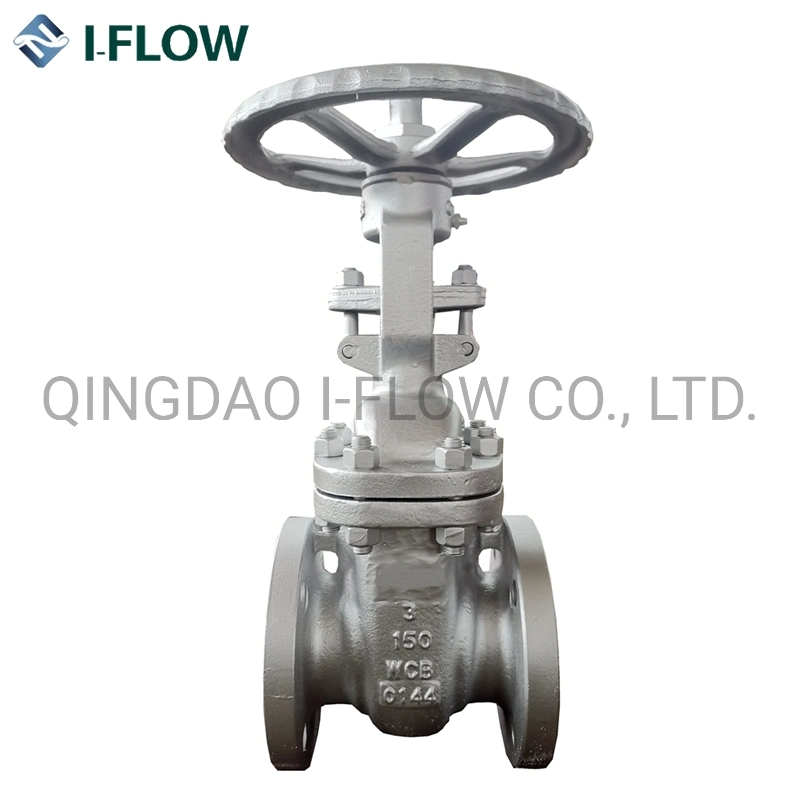

DN80 Pn16 ANSI 150 Flanged Stainless Steel Cast Steel Gate Valve




Specification

No.Part NameMaterialDN80 Pn16 ANSI 150 Flanged Stainless Steel Cast Steel Gate Valve

1BodyA216-WCB
2Seat RingA105+CR13
3WedgeA216-WCB+CR13
4Bonnet Stud NutA194-2H
5Bonnet StudA193-B7
6StemA182-F6a
7BonnetA216-WCB
8Stem Back SeatA276-420
9Eyebolt pinCarbon Steel
10EyeboltCarbon Steel
11Eyebolt NutCarbon Steel
12Grease FittingBrass+Steel
13Handwheel NutCarbon Steel
14HandwheelDuctile Iron
15Yokesleeve Jam nutCarbon Steel
16YokesleeveBronze
17Gland FlangeA216-WCB
18GlandA276-420
19PackingGraphite
20Bonnet GasketGraphite+304



Dimensions data(mm)



NPS23456810121416182024
L177.8190.5203.2228.6254266.7292.1330.2355.6381406432457508
D152178191229254279343406483533597635699813
D1120.7139.7152.4190.5215.9241.3298.5362431.8476.3539.8577.9635749.3
D292105127157186216270324381413470533584692
b14.416.417.922.422.423.926.928.930.233.935.438.441.446.4
n-d4-194-194-198-198-228-228-2212-2512-2512-2916-2916-3220-3220-35
f1.61.61.61.61.61.61.61.61.61.61.61.61.61.6
H345387430513583648790935110012001330148016351935
W200200250250300300350400450500500600600650

DN80 Pn16 ANSI 150 Flanged Stainless Steel Cast Steel Gate Valve
Company Profile

Qingdao I- Flow Co., Ltd., established in 2010,located in the beautiful city of Qingdao,China . Our products include marine valve,butterfly valve, balancing valve, gate valve, globe valve, knife gate valve,check valve , ball valve. in cast iron,brass, bronze, polypropylene etc, to be applied in water treatment,  HVAC, marine, oil and gas etc.

IFLOW owns research and development team, and is managed strictly under the rules of ISO 9001 quality control system , we have supplied flow control products for international clients for more than 10 years and are selling to more than 40 countries, such as USA, Germany, Italy, Holland, Sweden, Norway, Singapore, U.K, U.A.E, Australia, Brazil, Peru etc.. Our products are used in Shangrila Hotel, Kerry Center, Milan Expo,MSC vessels etc, In addition, we and associated company have obtained CE, WRAS, DNV,GL,LR, ABS certificates.

Our Mission: Good valve with caring service.

We greatly appreciate your time and look forward to serving you in the near future!
DN80 Pn16 ANSI 150 Flanged Stainless Steel Cast Steel Gate Valve
DN80 Pn16 ANSI 150 Flanged Stainless Steel Cast Steel Gate Valve
DN80 Pn16 ANSI 150 Flanged Stainless Steel Cast Steel Gate Valve
DN80 Pn16 ANSI 150 Flanged Stainless Steel Cast Steel Gate Valve

FAQ
1.Can I have a sample order for valve?
A: Definitely Yes. We welcome your sample order for test and quality check. Mixed samples are acceptable.
2. Can you provide OEM or ODM service?
A: Yes, we have professional research & development team. The products can be manufactured as per your request.
3. Can you provide the relevant documentation and certificate?
A:Yes, we can provide you with the documentation and certificate you need , ISO9001:2000 international quality system certification, (CE)certification of the European Community, Det Norske Veritas (DNV) factory certificate, Lloyd's Register (LR) factory certificate, China Classification Society (CCS) quality system certificate and the FM/UL certification of the US, Bureau Veritas(BV) ,American Bureau of Shipping(ABS) etc. Of course we can also provide you the test Report; Certificate of Material Analysis; Certificate of Origin; and other export documents if required.
4. What is your terms of delivery?
A: We accept EXW, FOB, CIF, DAP etc. You can choose the one which is the most convenient for you.
5. What's the package and how do you ship the goods?
A: Usually sea worthy plywood cases. We usually ship by sea. Train and air delivery are also optional.
6. How to deal with after sales ?
A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. Longer warranty period could be provided with detailed request and discussion.
7. What is the average lead time?
A:For samples, the delivery time is about 2-5 days. For batch production, the lead time is about 15-60 days after receiving the deposit payment. We can provide production schedule and related photos every two weeks. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for production drawings. If our lead times do not work with your deadline, please send your requirements with your sale. In all cases we will try to accommodate our production plan to your needs.
8. Why choose us?
A:1 Genuine products with excellent quality and competitive price.

2,Cooperating with customers all over the world from more than 60 countries and regions, knowing the markets very well.
3,We have been specializing in flow control area for more than 15 years. Everyone can be rest assured working with us. 4,After-sale services will be highly-satisfying. Any problem and feed backs will be answered in short time.
9: How can I trust your company?
A:
 We are verified Golden supplier and creditable company on Made-In-China, we are focusing on the long term relationship with customers, we have worked with thousands of customers since company built 15 years ago, Including Fortune 500 companies. Customers always make highly complementary remarks.
