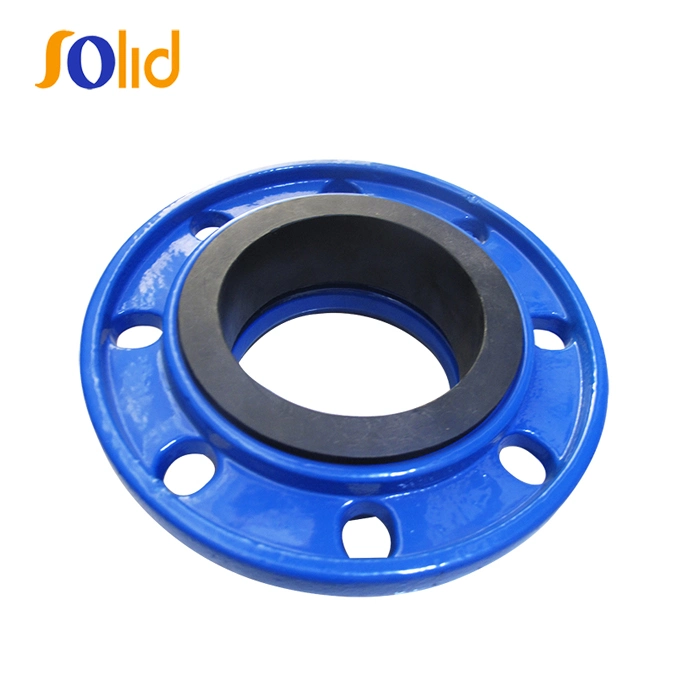

PE Quick adaptor is used on PVC/PE pipe. It has a gasket and a restained brass rings(alternative) .When you put the pipe in the adaptor body and fasten the bolts, the brass ring will fasten the pipe to avoid it pull out.
1.Diameter from DN40 TO DN400
2.The body is made by ductile iron material
3.The gasket is EPDM and suitable for drink water or NBR for GAS
4.The body can Resin coated with 150 um
5.quick adaptor are designed for use on air,water,sewer and gas pipelines.
6. The adaptors are for jointing with PVC pipes or PE pipes .
7.Quick adaptor can be manufactured to specified flange drilling such as BS4504 PN10,16,25,40,BS10 Table D,E and F or ANSI flange drillings
Material | Ductile iron Quick adaptor |
Size | DN40-DN400 |
Rubber gasket | EPDM |
Grip | Copper alloy |
Dimension in mm:
OD | FLANGE(PN10 or PN16) | L |
50 | 40 | 50 |
63 | 60/65 | 50 |
75 | 65 | 55 |
90 | 80 | 60 |
110 | 100 | 65 |
125 | 125 | 7 |
140 | 125 | 70 |
160 | 150 | 80 |
180 | 150 | 85 |
200 | 200 | 90 |
225 | 200 | 95 |
250 | 25 | 105 |
280 | 250 | 110 |
315 | 300 | 120 |
355 | 300 | 130 |
400 | 400 | 140 |
