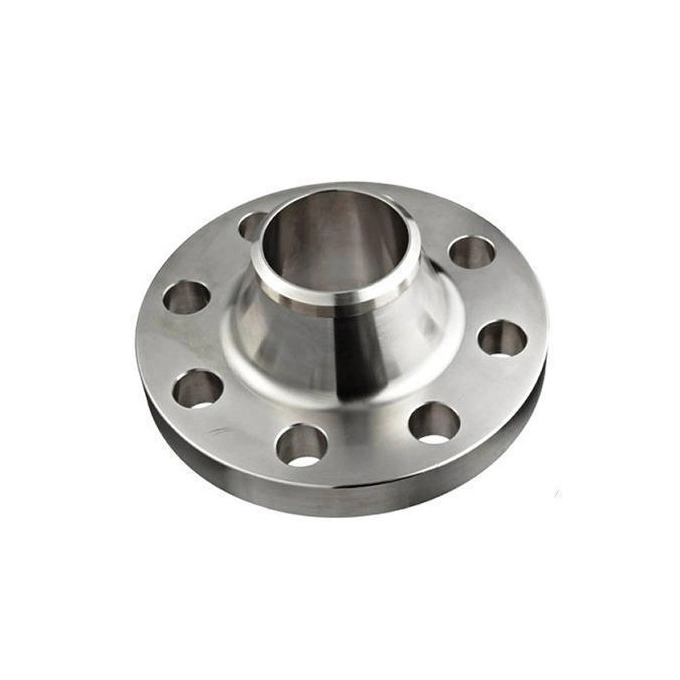

ASME B16.47 A694 F60 65 70 Weld Neck Flange Carbon Steel Pipe Flange
Size: 1/2" to 80'', DN15-DN2000
Standard: ASTM A105, A350 LF2, Q235/20Mn, ASME B16.5 & ASME B16.47, EN1092-1, AWWA/DIN/BS/JIS /UNI/SABS/GOST etc
Type: WN, SO, SWF, BL, OF, LF, PL
Pressure: 150Lbs, 300Lbs, 600Lbs, 900Lbs, 1500Lbs, 2500Lbs, /PN6, PN10, PN16, PN20, PN25, PN40/ Class A, B, C, D, E
Flange Facing: Raised face, Flat face, Ring Joint face, etc
Surface Furnishing: Stock finish, spiral serrated, water lines
Surface Treament: Black paint, yellow paint, hot dip galvanized, electrolytic tinning, spray coating, transparent anti-rust oil or buyer's request
Size: 1/2" to 80'', DN15-DN2000
Standard: ASTM A105, A350 LF2, Q235/20Mn, ASME B16.5 & ASME B16.47, EN1092-1, AWWA/DIN/BS/JIS /UNI/SABS/GOST etc
Type: WN, SO, SWF, BL, OF, LF, PL
Pressure: 150Lbs, 300Lbs, 600Lbs, 900Lbs, 1500Lbs, 2500Lbs, /PN6, PN10, PN16, PN20, PN25, PN40/ Class A, B, C, D, E
Flange Facing: Raised face, Flat face, Ring Joint face, etc
Surface Furnishing: Stock finish, spiral serrated, water lines
Surface Treament: Black paint, yellow paint, hot dip galvanized, electrolytic tinning, spray coating, transparent anti-rust oil or buyer's request
| Material brand | Chemical component content | Mechanical properties | |||||||||
| C | Mn | Si | S | P | Cr | Mo | Ni | Tensile Strength | Yield strength | elongation | |
| A105 | ≤0.35 | 0.6-1.05 | 0.1-0.35 | ≤0.04 | ≤0.035 | / | / | / | ≥485 | ≥250 | ≥30 |
| A182 F9 | ≤0.15 | 0.3-0.6 | 0.5-1 | ≤0.030 | ≤0.030 | 8-10 | 0.9-1.1 | / | ≥585 | ≥380 | ≥20 |
| A182 F5 | ≤0.25 | ≤0.6 | ≤0.5 | ≤0.04 | ≤0.03 | 4-6 | 0.44-0.65 | ≤0.5 | ≥485 | ≥275 | ≥20 |
| A182 F11 | 0.05-0.2 | 0.3-0.8 | 0.5-1 | ≤0.030 | ≤0.030 | 1-1.5 | 0.44-0.65 | ≥485 | ≥275 | ≥20 | |
| A182 F22 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 | ≥515 | ≥310 | ≥20 | |
| A182 F304 | ≤0.08 | ≤2 | ≤1 | ≤0.04 | ≤0.03 | 18-20 | 8-11 | ≥515 | ≥205 | ≥30 | |
| A182 F304L | ≤0.03 | ≤2 | ≤1 | ≤0.04 | ≤0.03 | 18-20 | 8-13 | ≥485 | ≥170 | ≥30 | |
| A182 F316 | ≤0.08 | ≤2 | ≤1 | ≤0.045 | ≤0.03 | 16-18 | 2-3 | 10-14 | ≥515 | ≥205 | ≥30 |
| A182 F316L | ≤0.03 | ≤2 | ≤1 | ≤0.045 | ≤0.03 | 16-18 | 2-3 | 10-15 | ≥485 | ≥170 | ≥30 |
| A182 F321 | ≤0.08 | ≤2 | ≤1 | ≤0.045 | ≤0.03 | 17-19 | 9-12 | ≥515 | ≥205 | ≥30 | |
