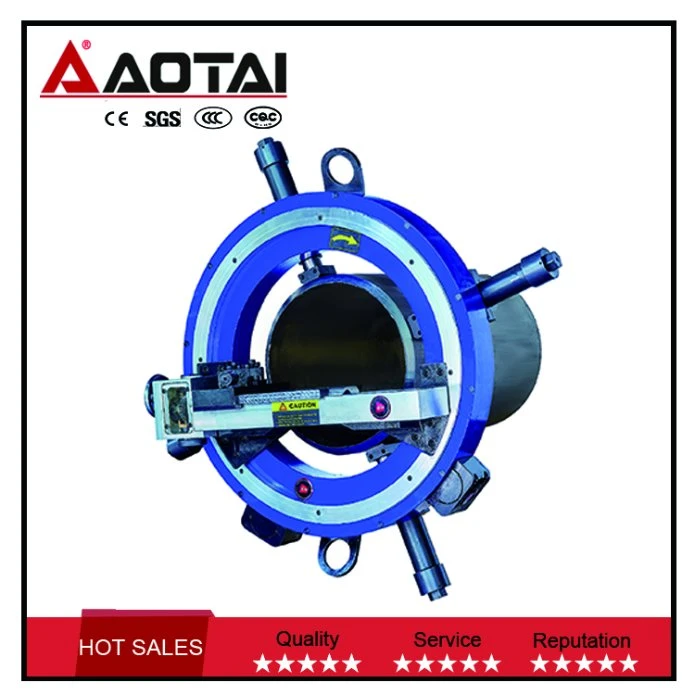

Aotai Flange Face and Beveling Machine Hyo - 500 - 2

FEATURES1.Designed to process the beveling and facing of heavy-duty pipe and flange.2.Out-mounted, mechanical swelling, safety and reliance.3.Not only for beveling the various heavy-duty steel, but also to process the flange face, seal groove, serrated finish.APPLICATIONPipeline installation and repair on the nuclear, shipping b

Featured Products

FEATURES
1.Designed to process the beveling and facing of heavy-duty pipe and flange.
2.Out-mounted, mechanical swelling, safety and reliance.
3.Not only for beveling the various heavy-duty steel, but also to process the flange face, seal groove, serrated finish.

APPLICATION
Pipeline installation and repair on the nuclear, shipping building, boiler, oil, natural gas.
DETAILS
       Compound feed mechanism                 Angle adjustment tool post
Aotai out Mounted Flange Facing and Beveling Machine Hyo - 500 - 2

             Swelling block                         Serrated spiral finish processing
TECHNICAL PARAMETER
Pneumatic(AYO)
Driven by pneumatic motor,
Air working pressure: 0.63-1.0Mpa,
Air consuming flux: 1500-3500L/min

Numerical controller(SYO)
Driven by the high-power servo motor and PLC control system.
Timing range: 0-20m/min,
Power 2.0kw, 220-230V, 50-60Hz

Hydraulic(HYO)
Driven by hydraulic motor.
Rated pressure: 13Mpa,
Rated flux: 28L/min,
Output torque: 260NM,
Electric power: 7.5kw, 380V-3ph
ModelWorking range
(ODmm)
Rotating speed
(rpm)
Serrated spiralBeveling/
Grooving
Facing and
flating
HYO-500100-500Adjustable×
HYO-1000500-1000Adjustable×
HYO-15001000-1500Adjustable×
HYO-25001500-2500Adjustable×
HYO-500-II100-500Adjustable
HYO-1000-II500-1000Adjustable
HYO-1500-II1000-1500Adjustable
HYO-2500-II1500-2500Adjustable
ON-SITE PROCESS
Aotai out Mounted Flange Facing and Beveling Machine Hyo - 500 - 2

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or 30 days , it's depand to quantity.

Q: What is your terms of payment ?

A: 1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;

2) If all the cost is less than USD $ 10000, T/T 100% required in advance.

COMPANY INFORMATION
Aotai out Mounted Flange Facing and Beveling Machine Hyo - 500 - 2

      Aotai Machine manufacturing Co., Ltd is specialized in the research, develop and manufacturing of welding equipments and welding technology supports. It is a high tech enterprise engaged in scientific research, develop, product manufacturing and trade .In the past years, we have imported advanced equipment and technology such as Japanese Zimarac digital controlled tooling machine multiple processing center, digital controlled tooth moving machine and tooth rolling machine. We have continuously updated our products and technology and our company have passed ISO9001 quality certification. And we are member of grade one supplier network for China Petroleum & Natural Gas Group Company.

    Aotai company has supplied superior quality equipments and technical services to China nucleus, aerospace, petroleum, chemical, power supply construction and boiler industry. And our exported products are widely used in the large scale piping projects in Kuwait, Sudan, Pakistan and etc. and are well accepted and supported by our foreign clients.

    We take credit and sincerity as the base of our development and we will utilize our advanced technology to service all our clients.
CERTIFICATION
Aotai out Mounted Flange Facing and Beveling Machine Hyo - 500 - 2
ORDER QUIDE

Before you place order to us, please let us know the following information:
  • Choose the right Model

  • Confirm your electric power supply ( Voltage, frequency and phase).

  • Confirm the beveling angel required

  • Confirm the welding joint required (U, V, Double V or Compound preparation)

  • Advise your pipe material ( Carbon steel, stainless steel or others)

  • Other special demands about machine

  • The spare parts needed.
