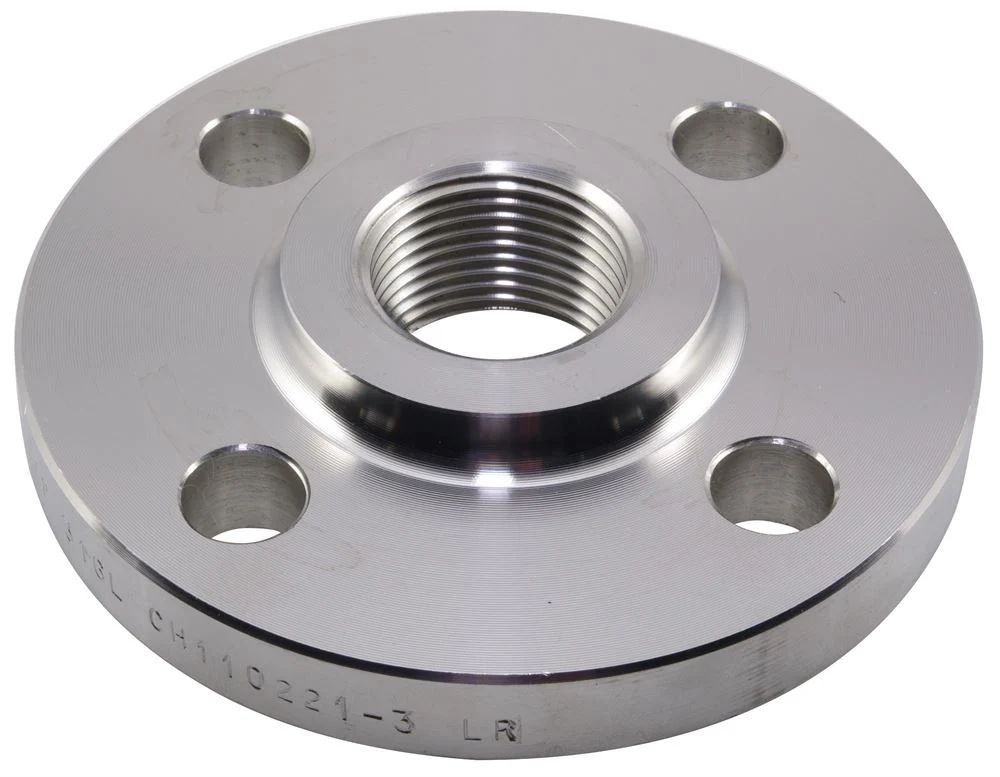

150lb ASME B16.5 A182 F321 Threaded Flange 150lb ASME B16.5 A182 F321 Threaded Flange
Type: Threaded Flange
Structure: Flanges
Sealing Surface: RF
Pressure: ANSI:150bls-2500bls,DIN/En/Uni:Pn6-Pn40,JIS:10k,16
Trademark: Shengtian
Specification: 1/2"-100", SCH5-160
Standard: ANSI, DIN, GB, JIS, GOST, BSW
Material: Stainless steel
Connection: Welding
Manufacturing Way: Forging
Surface: Rust-Proof Oil, Black, Yellow, Galvanized
Transport Package: Standard Export Seaworthy Package
Origin: China
| Carbon Steel Flanges | ||
| Material | Carbon steel | ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH,Q235 |
| P250GH, P280GHM 16MN, 20MN ,20# | ||
| Stainless steel | ASTM A182, F304/304L, F316/316L | |
| Alloy steel | ASTM A182 A182 F12,F11,F22,F5,F9,F91etc. | |
| Standard | ANSI | Class 150 Flanges-Class 2500 Flanges |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| JIS | 5K Flanges-20K Flanges | |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar | |
| GB | 6Bar10Bar16Bar25Bar40Bar | |
| TYPE | 1.Welding neck Flange 2.Slip on | |
| 3.Blind flange 4.Long welding neck flange | ||
| 5.Lap joint flange 6.Socket welding | ||
| 7.Threaded flange 8.Flat flange | ||
| Surface | Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized | |
| Connection | Welding, Threaded | |
| Technical | Forged, Casting | |
| Size | DN10-DN3600 | |
| Package | 1.>Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside). 2:As Customers' Requirements | |
| Heat Treatment | Normalizing, Annealing, Quenching Tempering | |
| Certificate | TUV,ISO9001:2008;PED97/23/EC,ISO14001:2004,OHSAS18001:2007 | |
| Applications | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. | |
| STANDARD | SIZE | PRESSURE | TYPE | |
| EN | EN1092-1 | DN10-DN600 | PN16-PN100 | PL BL WN SO LAP SW TH |
| ANSI | ANSI B16.5 | DN10-DN600 | 150LBS ~ 3000LBS | PL BL WN SO LAP SW TH |
| ANSI B16.47 | DN10-DN600 | 150LBS ~ 3000LBS | PL BL WN SO LAP SW TH | |
| JIS | JIS B2220 | DN10-DN600 | 5K-40K | PL,BL |
| DIN | DIN 2573,2576 | DN10-DN600 | PN6 | SO |
| DIN 2543,2544 | DN10-DN600 | PN16 | SO | |
| DIN 2527 | DN10-DN600 | PN6-PN100 | BL | |
| DIN 2541,2542 | DN10-DN600 | PN6,PN10 | LAP | |
| DIN 2501,2502,2503 | DN10-DN600 | PN16,PN25,PN40 | SO | |
| BS | BS 4504 | DN10-DN600 | PN10,PN40 | SO,BL |
| BS10 TABLE - D / E / F | DN10-DN600 | - | SO, LAP | |
| GOST | GOST 12820-80 | DN10-DN600 | PN6-PN25 | SO,BL |
| Product name: | 150lb ASME B16.5 A182 F321 Threaded Flange |
| Specification: | 1/2"-100", SCH5-160 |
| Sealing Surface: | RF |
| Standard: | ANSI, DIN, GB, JIS, GOST, BSW |
| Material: | Stainless steel |
Selling Units:
Single item
Single package size: 1x1x1
Package Type: By wodden case,pallet in 20 days or according to quantity
Lead Time :20 days around or according to customer order
| Quantity(Piece) | 1 - 2 | >2 |
| Est. Time(days) | 15 | To be negotiated |
